Pragmatic
Polyglot Data Analysis
Laurent Gautier - Big Data Bootcamp Boston 2016
(notebook as HTML| ipynb)
Disclaimer:
I am here as an individual, long-active Open Source developer and data scientist. Views and opinions expressed are solely my own.
Slides
http://lgautier.github.io/rpy2/gbdc-ppda-slidesAcknowledgments
- Organizers and sponsors of this meeting
- authors, contributors, and sponsors for
- R
- Python
- R packages
- Python packages
- Docker
- rpy2 contributors
- rpy2 users (in the hope they become contributors)
This talk contains edible art
runnable code
The easy way:
docker run --rm -it -p 8888:8888 \
rpy2/gbdc-ppda-slides
*: If docker-machine (Windows, OS X), the address is:
docker-machine ip [MACHINE]
First, two questions. Who thinks that:
- mixing languages is a good idea ?
- is NOT a good idea ?

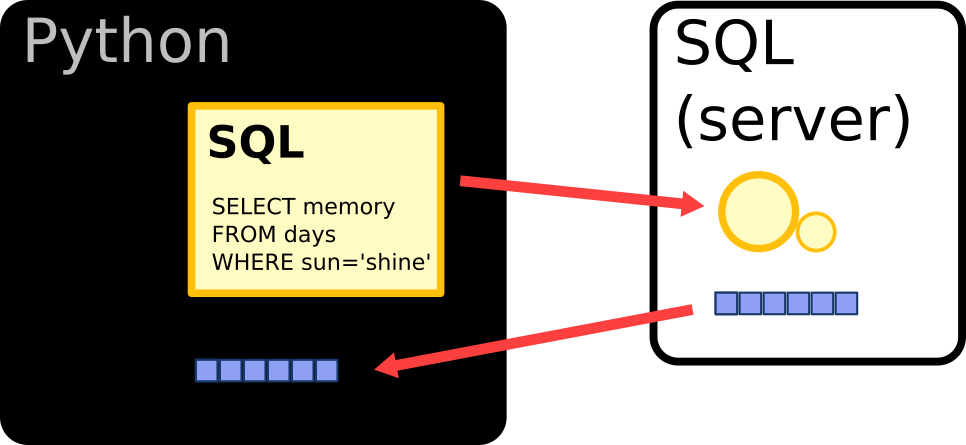

Is this familiar ?
cursor = dbcon.cursor()
sql = """
SELECT reviewhelpful, count(*)
FROM review
WHERE reviewscore < 2
GROUP BY reviewhelpful
"""
cursor.execute(sql)
Hardly groundbreaking.
That's polyglot data analysis though.
You* probably have already done polyglot data analysis
(*: yes, you)You should not feel bad about it
Data in - Insights out
Data science: a language landscape
(alphabetical order - not comprehensive)
| C | C++ | bash | Javascript | Julia | Python | R | Scala | SQL |
| Julia | ⇒ | Python | : | PyCall |
| Julia | ⇒ | R | : | Rif or RCall |
| [somewhere] | ⇒ | R | : | Rserve |
| R | ⇒ | Python | : | rPython |

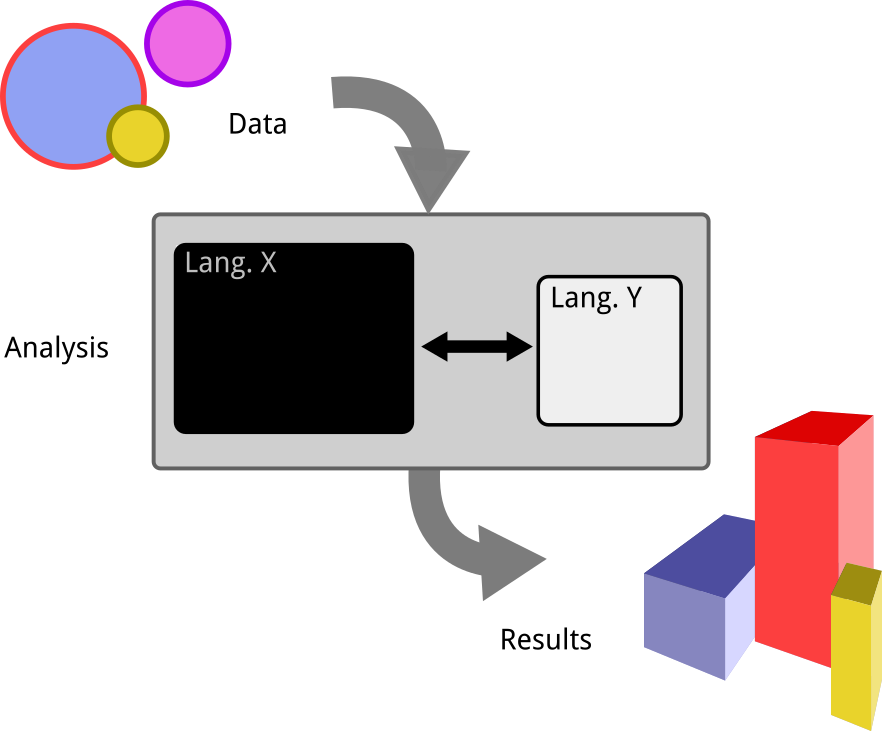

Polyglot data analysis a project/ensemble with:
- A master/glue/host language
- Slave/guest language
Data in tables
|
Detailed account of raw materials and workdays for a basketry workshop. Clay, ca. 2040 BC (Ur III).
Source: wikipedia Marie-Lan Nguyen (2006) |
Fine foods
J. McAuley and J. Leskovec. From amateurs to connoisseurs: modeling the evolution of user expertise through online reviews. WWW, 2013. http://snap.stanford.edu/data/web-FineFoods.html
product/productId: B00...W
review/userId: A1S...MSMR
review/profileName: [some profile name]
review/helpfulness: 0/0
review/score: 1.0
review/time: 1344556800
review/summary: Sad outcome
review/text: Five minutes in, one tentacle was bitten off, ball inside
cracked in half. Not durable enough to be a dog toy.
Disappointed :(. So is the dog :(.
| productid | VARCHAR |
| reviewerid | VARCHAR |
| reviewername | VARCHAR |
| reviewhelpful | VARCHAR |
| reviewscore | INTEGER |
| reviewtime | INTEGER |
| reviewsummary | VARCHAR |
| reviewtext | VARCHAR |
Work with a relational database
In[1]:
import sqlite3
dbfilename = "/opt/data/finefoods.db"
dbcon = sqlite3.connect(dbfilename)
In[2]:
cursor = dbcon.cursor()
sql = """
SELECT reviewhelpful, count(*)
FROM review
WHERE reviewscore < 2
GROUP BY reviewhelpful
"""
cursor.execute(sql)
Out[2]:
Python and SQL
In[3]:
from collections import Counter
ct = Counter()
for row_n, (score, count) in enumerate(cursor, 1):
ct[score] = count
print(ct.most_common(n=3))
In[5]:
sql = """
select reviewhelpful, count(*)
from (select T.reviewername
from (select reviewername, count(*) as reviewer_count
from review
group by reviewername) as T
where T.reviewer_count > 5) as U
inner join review
on U.reviewername = review.reviewername
where reviewscore < 2
group by reviewhelpful
"""
cursor.execute(sql)
Out[5]:
Complex queries require increasingly complex SQL
⇨ So we need to know SQL, don't we ?
Object-relational mapping (ORM)
The promise to operate on ojects in the host language, without writting SQL.Python and ORMs
|
⇩
result = (Review
.select()
.where(Review.reviewscore < 2))
Set up
In[6]:
from sqlalchemy.ext.automap import automap_base
from sqlalchemy.orm import Session
from sqlalchemy import create_engine
Base = automap_base()
# engine, suppose it has two tables 'user' and 'address' set up
engine = create_engine("sqlite:////opt/data/finefoods.db")
Create classes through reflection
In[7]:
Base.prepare(engine, reflect=True)
review = Base.classes.review
Query as chained calls
In[8]:
session = Session(engine)
from sqlalchemy import func # SQL functions
query = (session
.query(review.reviewhelpful,
func.count(review.reviewhelpful))
.filter(review.reviewscore < 2)
.group_by(review.reviewhelpful)
.order_by(func.count(review.reviewhelpful).desc()))
res = query.all()
res[:3]
Out[8]:
Chained calls generate SQL
In[9]:
from sqlalchemy.dialects import sqlite
print(str(query.statement.compile(dialect=sqlite.dialect()))
.replace('GROUP BY', '\nGROUP BY'))

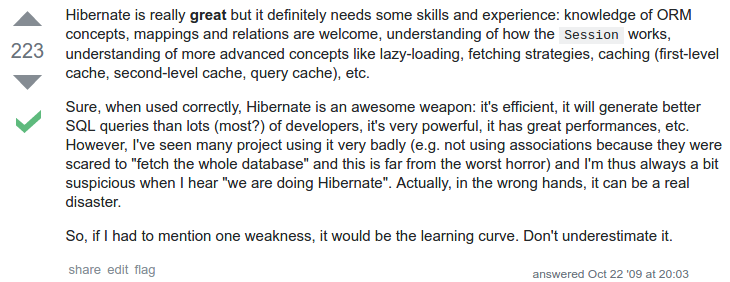

About Java's Hibernate:
Back to tables
- Model tables
- Make most-common operations easy
dplyr
| mutate | modify/add column |
| filter | filter rows |
| select | select columns |
| group_by | group rows |
| summarize | summarize groups of rows |
(RStudio)
datasrc <- src_sqlite(dbfilename)
review_tbl <- tbl(datasrc, "review")
res <- filter(review_tbl,
reviewscore < 2) %>%
count(reviewhelpful) %>%
arrange('desc(n)')
But... we started with Python, didn't we ?
Python vs R anyone ?

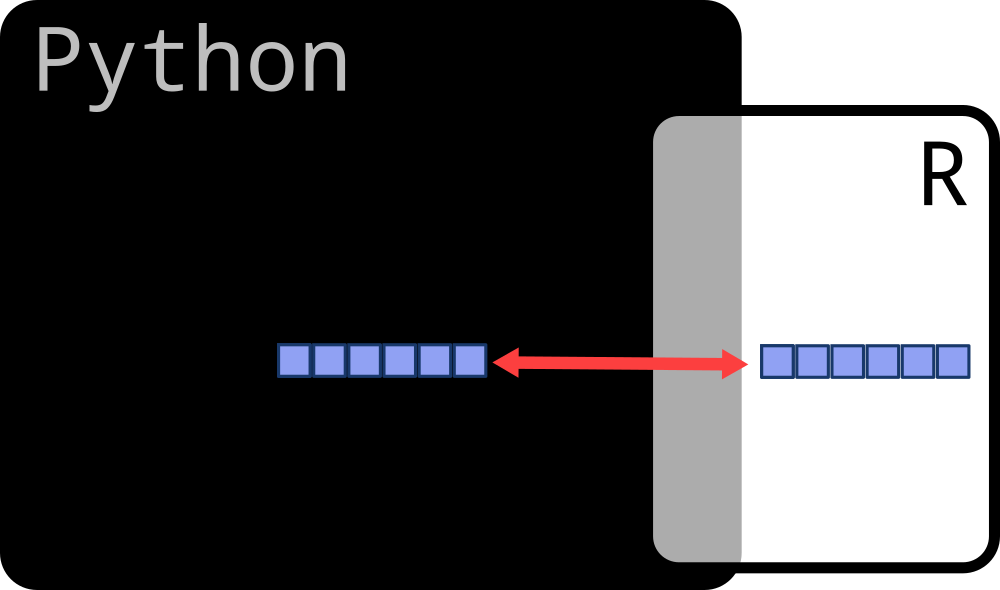

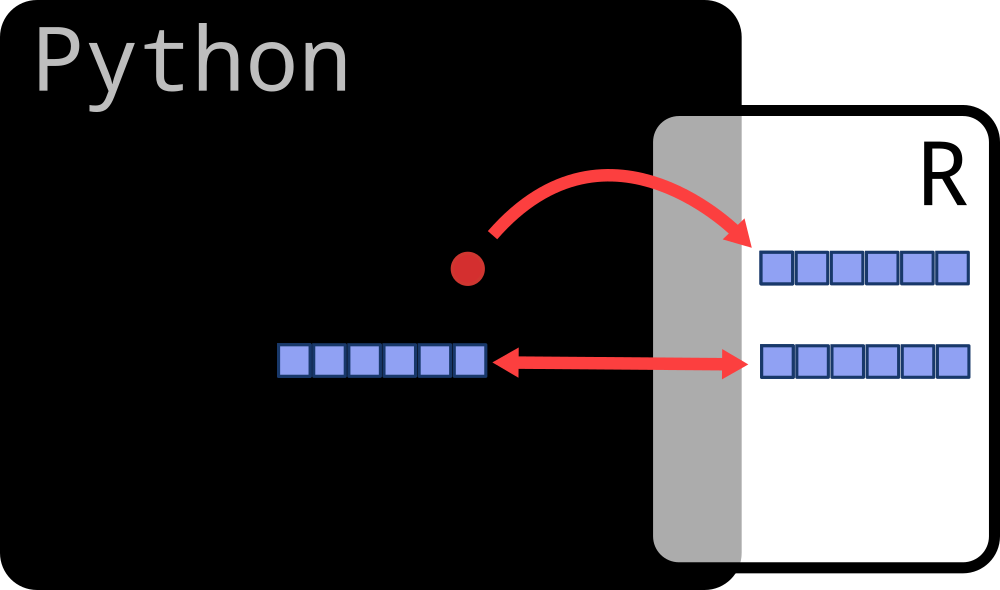

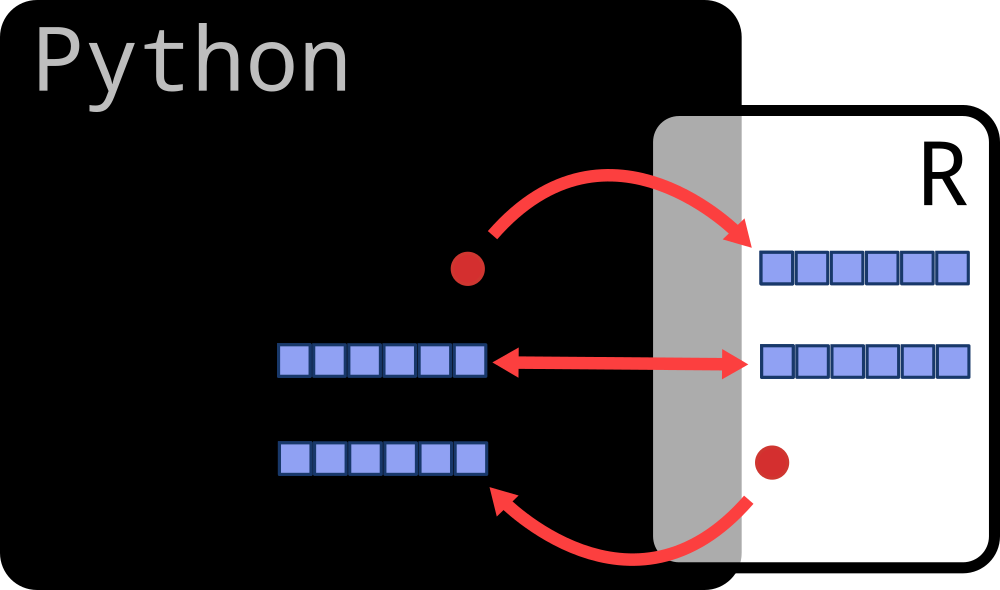

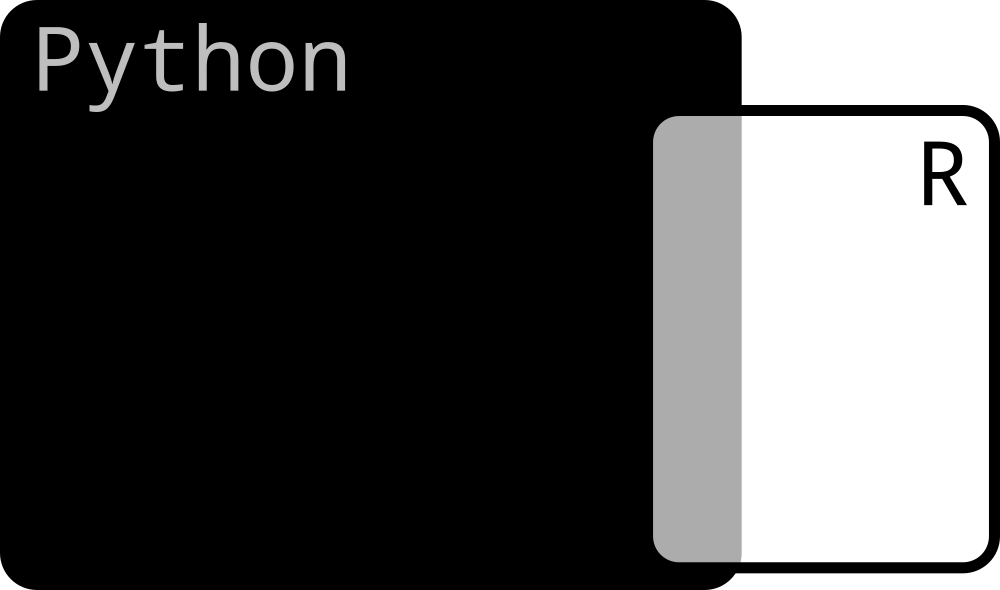

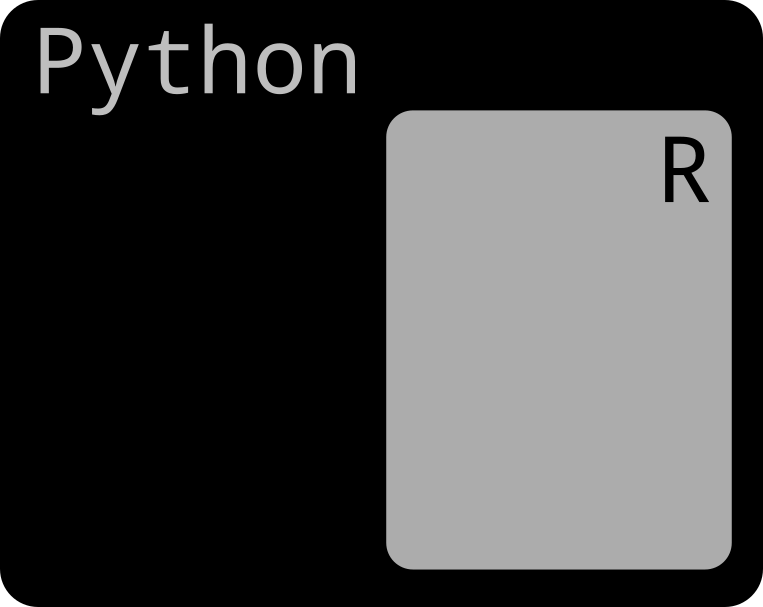

PythonR !
Just import the R package from Python
In[11]:
from rpy2.robjects.lib import dplyr
datasrc = dplyr.src_sqlite(dbfilename)
review_tbl = datasrc.get_table("review")
Query as chained calls
In[12]:
res = (review_tbl
.filter('reviewscore < 2')
.count('reviewhelpful')
.arrange('desc(n)'))
print(res)
While we are with R, what about figures ?
(and about R as a DSL in Python ?)In[13]:
from rpy2.robjects import r, globalenv
import rpy2.robjects.lib.ggplot2 as gg
split_review = \
'as.integer(sapply(strsplit(reviewhelpful, "/"), "[", %i))'
p = (gg.ggplot((res
.collect()
.mutate(r1 = split_review % 1,
r2 = split_review % 2))) +
gg.aes_string(x='r1+1', y='r2+1', size='n') +
gg.geom_point(alpha = 0.5) +
gg.scale_x_log10("review voted helpful") +
gg.scale_y_log10("review") +
gg.scale_size(trans="sqrt"))
In [14]:
from rpy2.robjects.lib import grdevices
with grdevices.render_to_bytesio(grdevices.png,
width=800,
height=600,
res=120) as b:
p.plot()
from IPython.display import Image, display
data = b.getvalue()
display(Image(data=data, format='png', embed=True))
What about Javascript then ?
- D3
- RStudio's Shiny (hint: R from Python)
- plotly (R pack. to plot ggplot2 objects)
- Continuum's bokeh (python package)
Python functions generate Javascript code.
Python + R + javascript
trilingual before we even know it !
trilingual before we even know it !
In[15]:
from bokeh.plotting import figure
from bokeh.plotting import figure, show, output_notebook
##from bokeh.resources import INLINE
output_notebook()
plot = figure()
res = (review_tbl
.filter('reviewscore < 2')
.count('reviewhelpful')
.collect())
import math
plot.scatter(list(int(x.split('/')[0]) \
for x in res.rx2('reviewhelpful')),
list(int(x.split('/')[1]) \
for x in res.rx2('reviewhelpful')),
radius=list(math.log10(x/100) for x in res.rx2('n')),
fill_alpha=.3)
Out[15]:
Spark
- Resilient Distributed Dataset (RDD)
- Abstracts the distribution of compute and data
- Function composition optimized before evaluation

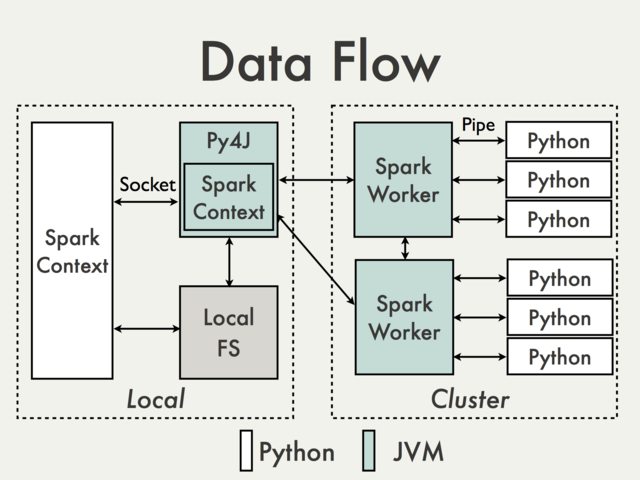

pyspark
Setup
In[17]:
import findspark
findspark.init()
import pyspark
conf = pyspark.conf.SparkConf()
(conf.setMaster('local[2]')
.setAppName('ipython-notebook')
.set("spark.executor.memory", "2g"))
sc = pyspark.SparkContext(conf=conf)
From SQL table to Spark DataFrame
In[18]:
from pyspark.sql import SQLContext, Row
sqlcontext = SQLContext(sc)
cursor.execute('select * from review limit 10000')
review = \
sqlcontext.createDataFrame(cursor,
tuple(x[0] for x in cursor.description))
review.registerTempTable("review")
The data is now distributed on a Spark cluster.
Running our query
In[19]:
sql = """
SELECT reviewhelpful, count(*) AS ct
FROM review
WHERE reviewscore < 2
GROUP BY reviewhelpful
ORDER BY ct DESC
"""
counts = sqlcontext.sql(sql)
- Good old SQL
- Translated to Spark, optimized, and to JVM bytecode
(Lazy) evaluation
In[20]:
res = counts.collect()
res[:3]
Out[20]:
Map-reduce with Spark
In[21]:
names = (review
.rdd
.flatMap(lambda p: p.reviewsummary.split())
.map(lambda word: (word.lower(), 1))
.reduceByKey(lambda a, b: a+b))
names.takeOrdered(10, key = lambda x: -x[1])
Out[21]:
Map-reduce with Spark
In[22]:
from collections import Counter
bad_tokens = set(('.', '!'))
def bigrams(p):
key = p.reviewerid
tokens = tuple(x.lower() \
for x in p.reviewsummary.split() \
if x not in bad_tokens)
ct = Counter('%s %s' % (tokens[i], tokens[i+1]) \
for i in range(len(tokens)-1))
return ((key, k, v) for k, v in ct.items())
Map-reduce with Spark
In[23]:
names = (review
.rdd
.flatMap(bigrams))
names.takeOrdered(10, key = lambda x: -x[2])
Out[23]:
Map-reduce with Spark
In[24]:
names = (review
.rdd
.flatMap(bigrams)
.map(lambda x: (x[1], x[2]))
.reduceByKey(lambda a,b: a+b))
names.takeOrdered(15, key = lambda x: -x[1])
Out[24]:
SQL, Map-reduce with Spark
In[25]:
sql = """
SELECT *
FROM review
WHERE reviewscore < 2
"""
lowscore = sqlcontext.sql(sql)
names = (lowscore
.rdd
.flatMap(bigrams)
.map(lambda x: (x[1], x[2]))
.reduceByKey(lambda a,b: a+b))
names.takeOrdered(5, key = lambda x: -x[1])
Out[25]:
The Finale
Python + R + Spark + SQLIn [26]:
## --- SQL ---
sql = "SELECT * FROM review WHERE reviewscore < 2"
lowscore = sqlcontext.sql(sql)
## --- Spark ---
names = (lowscore
.rdd
.flatMap(bigrams)
.map(lambda x: (x[1], x[2]))
.reduceByKey(lambda a,b: a+b))
lst = names.takeOrdered(20, key = lambda x: -x[1])
## --- R (from Python) ---
from rpy2.robjects.vectors import StrVector, IntVector
dataf = dplyr.DataFrame({'word_pair': StrVector([x[0] for x in lst]),
'count': IntVector([x[1] for x in lst])})
p = (gg.ggplot(dataf.arrange('desc(count)')) +
gg.geom_bar(gg.aes_string(x='factor(word_pair, levels=word_pair)',
y='count'),
stat="identity") +
gg.scale_x_discrete('word pair') +
gg.theme(**{'axis.text.x': gg.element_text(angle = 90, hjust = 1)}))
with grdevices.render_to_bytesio(grdevices.png,
width=800, height=600,
res=120) as b:
p.plot()
display(Image(data=b.getvalue(), format='png', embed=True))
There would be more to cover...
- Transpiler to C for (runtime) speed: Cython
- JIT-compiling to LLVM for (runtime) speed: llvmlite
- (Web) services: Thrift
In Summary
- Data analysis needs better collectively covered by several languages
- Use what is already out there. Be pragmatic.
